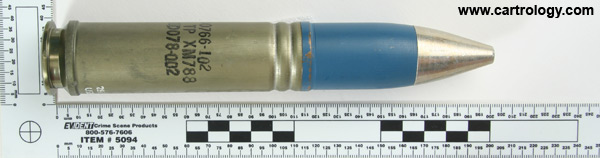

30 x 113mm B United States
Details
| Type | TP, XM788 |
|---|---|
| Projectile | steel, aluminum windscreen, blue, 1 copper driving band Projectile Markings: (white ink) 30MM TP 28200704-101A MHR81D005-005 |
| Case | aluminum, double choke crimp, olive drab anodized Markings: (black ink) 28200766-102 30MM TP XM788 MHR81D078-002 (white ink) 28114028-101-C USE80E002-011 |
| Primer | electric, flat, brass |
| Headstamp | [none] |
