20 x 139mm HS820 West Germany

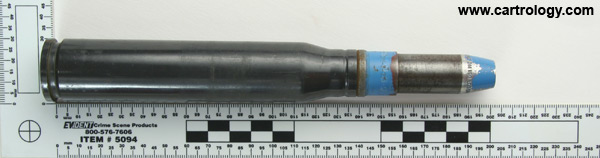

20 x 139mm HS820 TP West Germany 20x139 DM1A1 LOS DN-3-192-X (on primer assembly) MN4 LOS RH-1-1 profile view.20 x 139mm HS820 TP West Germany 20x139 DM1A1 LOS DN-3-192-X (on primer assembly) MN4 LOS RH-1-1 head view.

Details

TypeTP
Projectilesteel, aluminum windscreen, blue, 1 iron driving band Projectile Markings: (white ink) LOS DN-3-27-X (stamped) 20K DM48 LOS DN-2-27 DM 1027 (stamped on fuze) EX AZ DM 150 LOS DN-2-27
Casesteel, choke crimp, dark grey lacquered
Primerpercussion (fired), flat, brass, screw-in crimp
Headstamp20x139 DM1A1 LOS DN-3-192-X (on primer assembly) MN4 LOS RH-1-1
NotesThis appears to be a reduced-range loading, made from a modified DM48 TP projectile.
