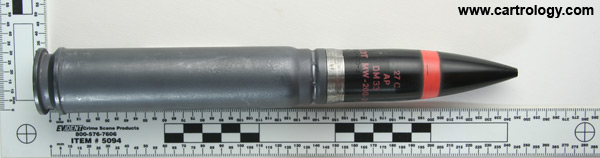

27 x 145mm B West Germany
Details
| Type | AP, DM33 |
|---|---|
| Projectile | aluminum, black with red band, 1 sintered iron driving band Projectile Markings: (red ink) 27G AP DM33 LOT MW-200-2-X (stamped) 27G DM33 LOT RG-200-2 DM1284 |
| Case | steel, segmented crimp, grey painted |
| Primer | none |
| Headstamp | 27x145 DM 1001 LOT DN-1-61-X |
| Notes | The projectile has a section cut out on one side (presumably for demilitarization purposes) that shows the pentrator as well as the outer projectile and wndscreen construction. |
