30 x 173mm GAU-8/A United States

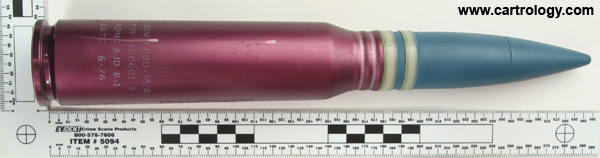

30 x 173mm GAU-8/A TP PGU-15/B United States (white ink) IVI 2-26-75 7300310-2-H profile view.30 x 173mm GAU-8/A TP PGU-15/B United States (white ink) IVI 2-26-75 7300310-2-H head view.

Details

TypeTP, PGU-15/B
Projectilesteel, aluminum windscreen, blue, 2 nylon driving bands Projectile Markings: (white ink) AJD 4-25-76
Casealuminum, double choke crimp, purple anodized, 1 hole Markings: (white ink) 30MM PGU-15/B P/N 7400601-2 AOMC AJD 8-1 DATE 6-76
Primerpercussion, flat, brass, 4-stake crimp
Headstamp(white ink) IVI 2-26-75 7300310-2-H
