35 x 228mm Oerlikon West Germany

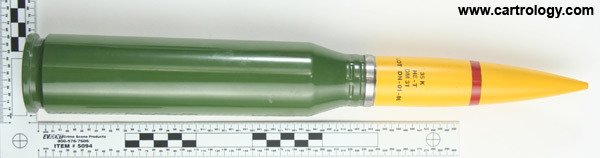

35 x 228mm Oerlikon HE-T DM31 West Germany 35x228 DM1001 LOS DN-01-86-X profile view.35 x 228mm Oerlikon HE-T DM31 West Germany 35x228 DM1001 LOS DN-01-86-X head view.

Details

TypeHE-T, DM31
Projectilesteel, aluminum windscreen, yellow, red band, 1 iron driving band Projectile Markings: (black ink) 35 K HE-T DM 31 LOT DN-01-86
Casesteel, double segmented crimp, green painted
Primerpercussion (fired), flat, brass, screw-in crimp
Headstamp35x228 DM1001 LOS DN-01-86-X
NotesThis is a hand-painted pre-production sample. Projectile is empty.
